The Zero-Trust Trap:
Why Your Azure App Service
Private Endpoints Keep Breaking

The Facade of Network Isolation

Network isolation in Azure is a facade. Architects often build fortresses while leaving the service tunnels wide open to **CI/CD** and **DNS misconfigurations**.

The industry standard for security is straightforward: Deploy a Private Endpoint, then terminate public network access. However, in enterprise ecosystems, these textbook answers trigger catastrophic failures for **API Gateways** and **Inbound CI/CD pipelines**. We don't just fix the network; we solve for the application lifecycle.

Deployment Block

DNS Gap

APIM Internal

Private Link

Deployment Post-Mortems: The CI/CD Trap

The most common trap I see is the Friday afternoon deployment failure. You disable public network access to secure your App Service. Congratulations, you just locked out GitHub Actions and Azure DevOps. Those public Microsoft-hosted agents rely on the public **Kudu Service Management (SCM)** portal to deploy your zip files.

The API Management Blindspot

If your API Management (APIM) instance is sitting on the public internet, and you lock the App Service it points to... APIM returns a generic **HTTP 503**. To bypass this, architects often throw a Private Endpoint onto APIM and call it a day.

Here is the harsh reality: You cannot use a Private Endpoint on APIM to route traffic outbound to a Private Endpoint on an App Service. Microsoft doesn't support it.

To securely bridge APIM to a private App Service backend, APIM must be deployed using VNet Integration (External or Internal Mode). (Crucial Architect Note: Injecting APIM into a VNet requires the Developer, Premium, or v2 tiers. Basic and Standard tiers cannot do VNet integration—don't design a solution your client's budget can't support.)

# Surgical IaC: Connecting Private DNS to Endpoint
resource "azurerm_private_endpoint" "app" {
  name                = "pe-webapp-prod"
  subnet_id           = azurerm_subnet.endpoint.id
  private_service_connection {
    name                           = "psc-webapp"
    private_connection_resource_id = azurerm_linux_web_app.main.id
    subresource_names              = ["sites"]
    is_manual_connection           = false
  }
  private_dns_zone_group {
    name                 = "dns-group"
    private_dns_zone_ids = [azurerm_private_dns_zone.app_service.id]
  }
}

The Architecture Decision Tree

Before diving into the topologies, use this quick guide to determine which pattern fits your exact requirements:

6 Strategic Blueprints for Sovereign Perimeters

What does "VNet Integration" actually do? It simply delegates a dedicated empty subnet inside your VNet to the App Service, giving it a secure outbound path.

There is no "one size fits all" for Azure networking. Based on Microsoft Quickstart templates and the Azure Landing Zone (ALZ) architecture, here are the validated patterns you should be deploying inside your Application Landing Zone (Spoke VNet):

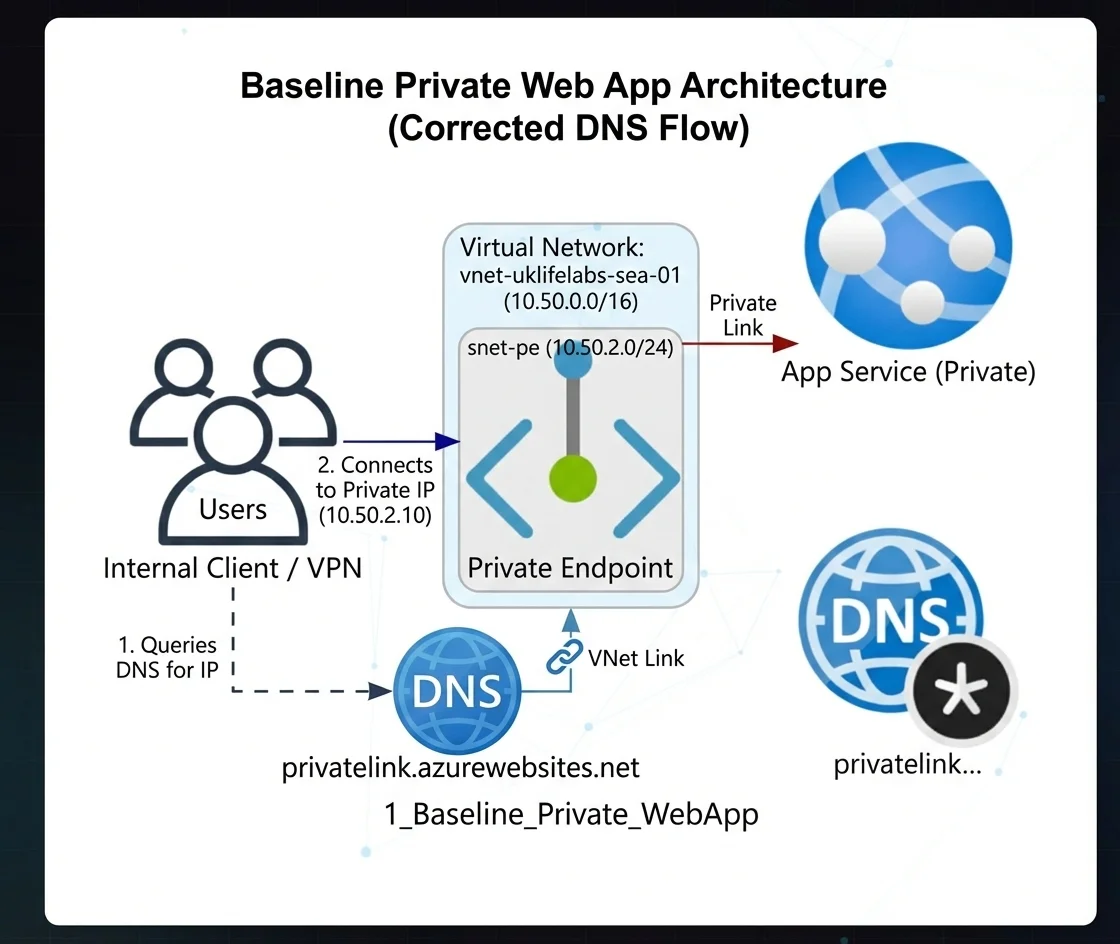

Blueprint 1: The Zero-Trust Perimeter (Internal Only) Blueprint

Strategic Intent: Full isolation for internal-only applications where internet exposure is a non-negotiable risk.

Scenario: You need a single Web App entirely isolated from the public internet, accessible only from within the corporate VNet via a Jumpbox, ExpressRoute, or VPN.

Source Code Below

Technical Lens

Private Endpoint (Inbound)

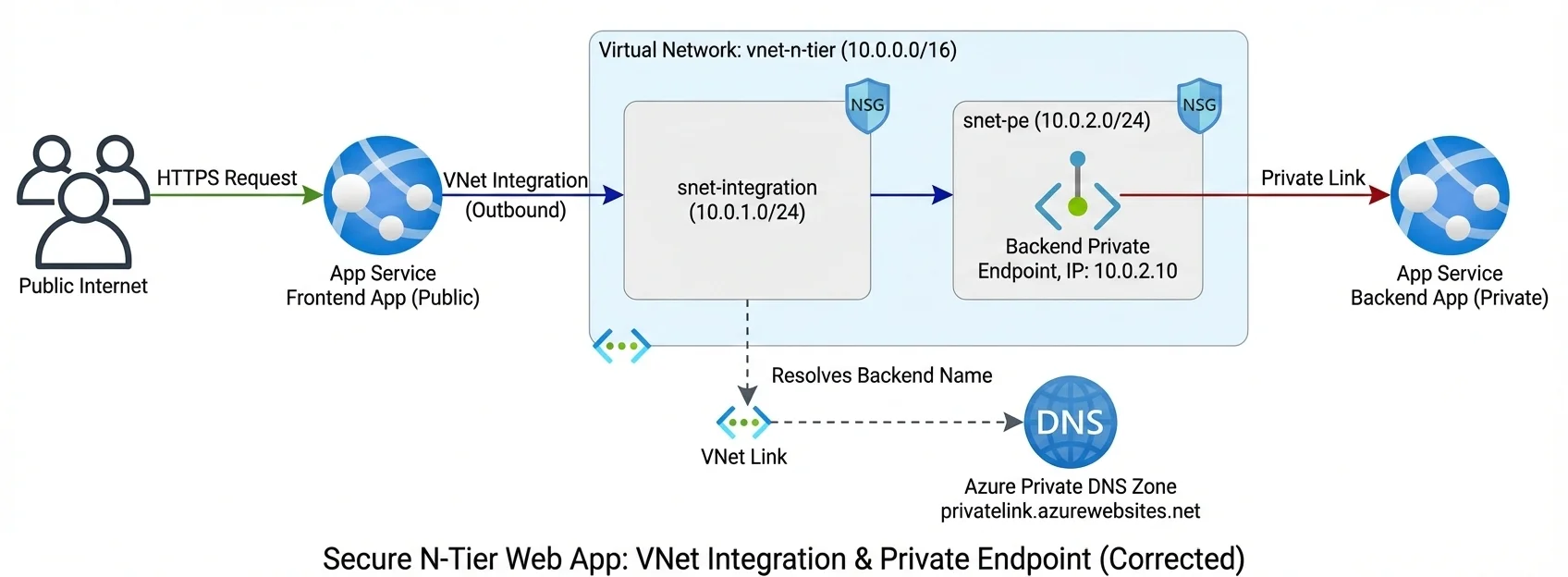

Blueprint 2: N-Tier Identity Isolation Blueprint

Strategic Intent: Securing the backend tier from public access while maintaining a governed public frontend layer.

Scenario: Your React Frontend (Public) needs to talk to a .NET Backend, but the Backend must remain hidden. The Frontend utilizes VNet Regional Integration. The Backend has an inbound Private Endpoint.

Source Code Below

Technical Lens

Regional VNet Integration (Outbound)

Private Endpoint (Inbound)

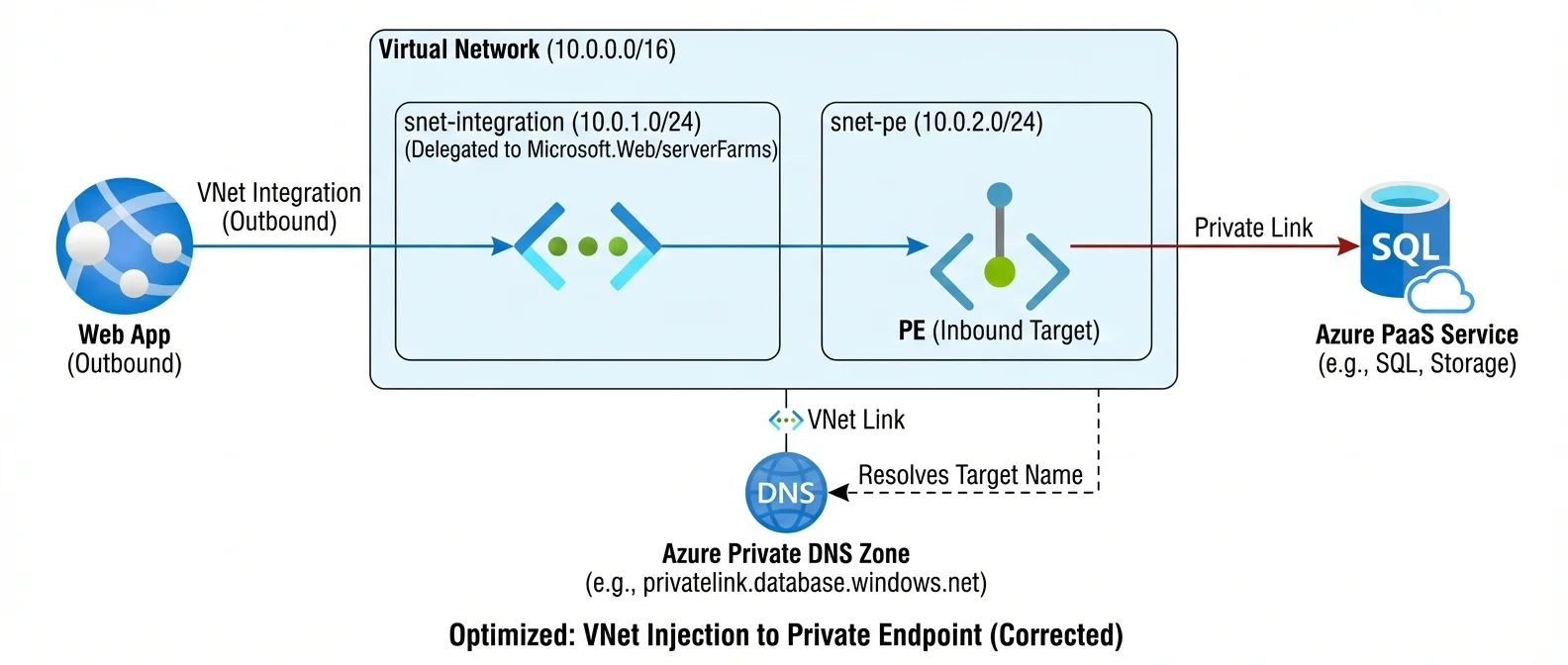

Blueprint 3: Governed Egress (Outbound VNet Tunnel) Blueprint

Strategic Intent: Guaranteeing that all application outbound traffic is routed through a managed network perimeter before reaching the public internet.

Scenario: Your Web App needs to securely reach a 3rd party or down-stream managed service that is locked behind a Private Endpoint in your VNet.

Source Code Below

Technical Lens

Outbound VNet Tunnel

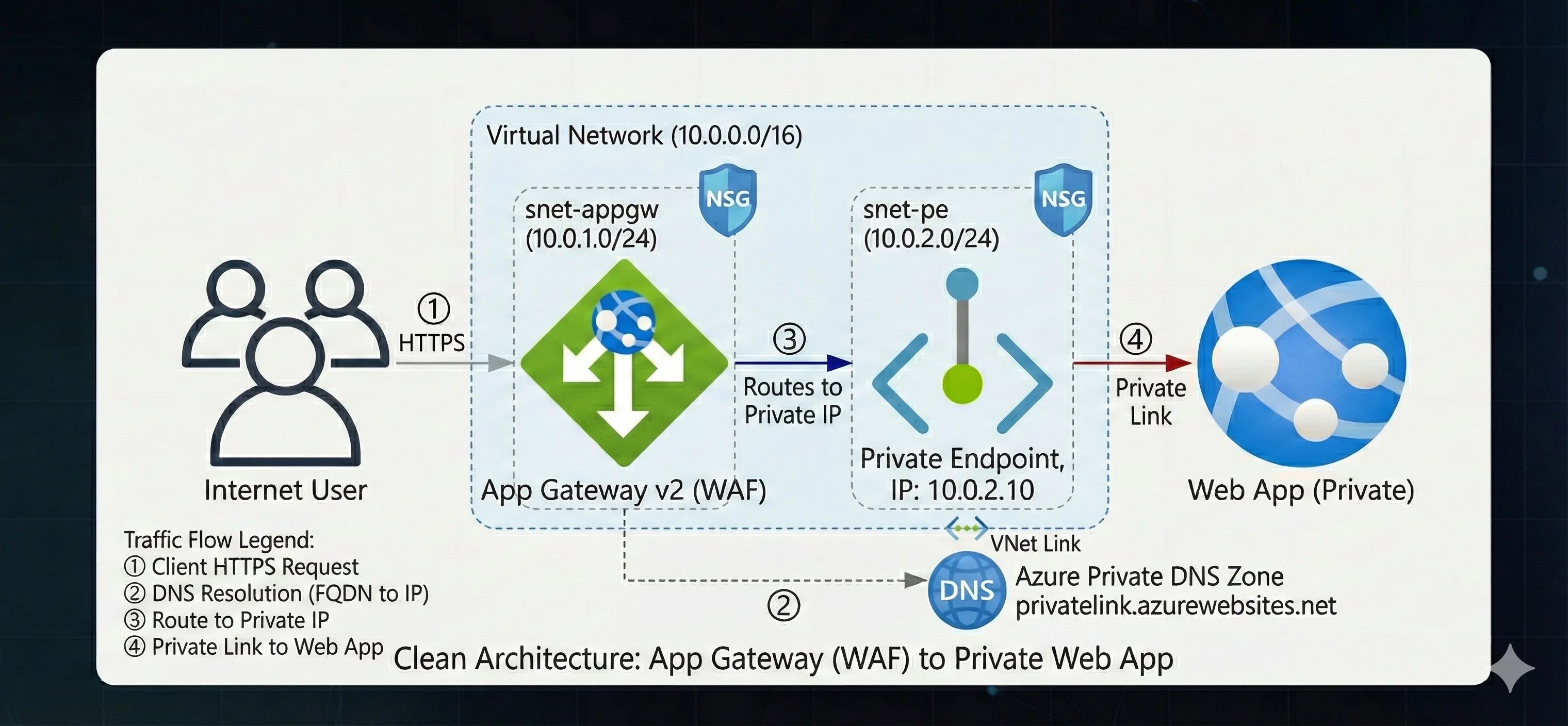

Blueprint 4: WAF Orchestration (App Gateway Integration) Production Grade

Strategic Intent: Centralized Layer 7 inspection and OWASP mitigation for public-facing web applications.

Scenario: You need Enterprise-grade Layer 7 protection. All traffic must hit an Application Gateway v2 first. The Gateway sits in a peered VNet and routes privately using the Private DNS Zone.

Source Code Below

Technical Lens

WAF v2: Inspection Zone

Private DNS Integration

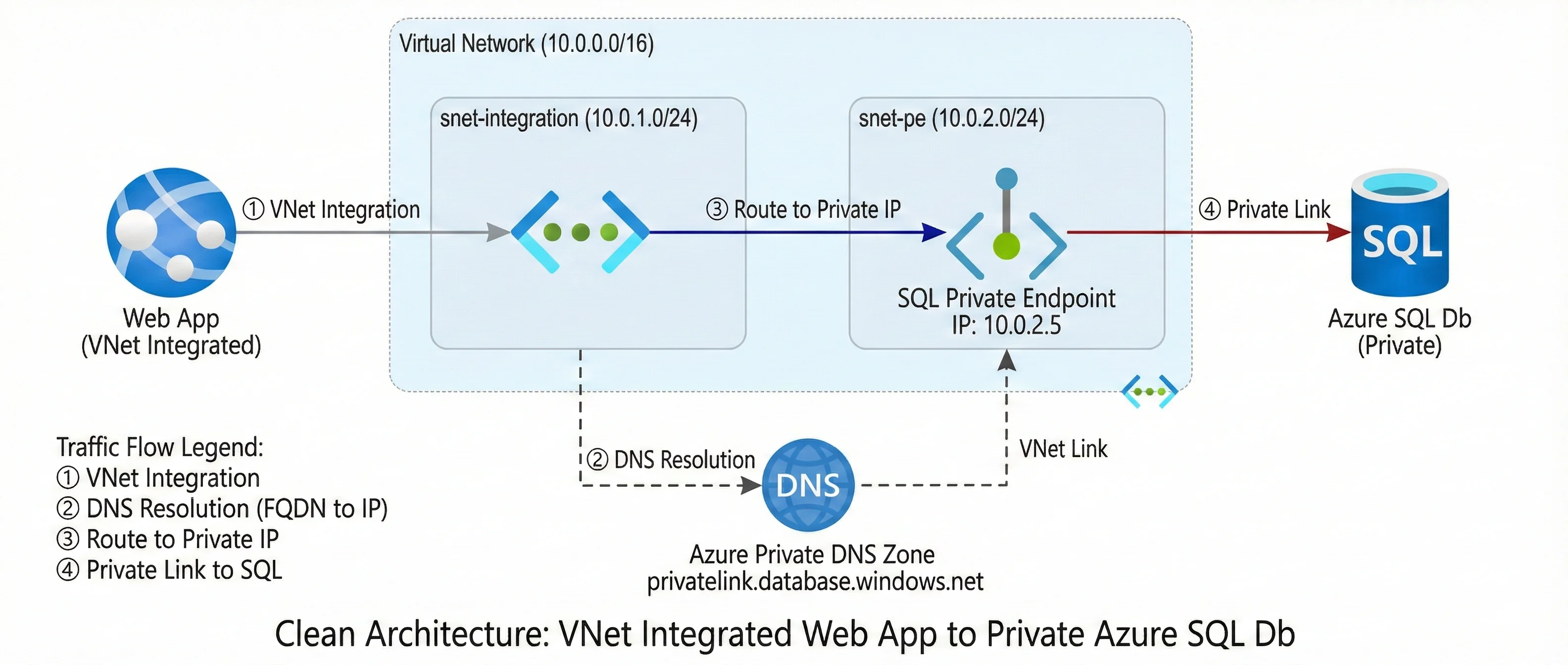

Blueprint 5: Isolated Data Ingress (Private SQL Hub) Production Grade

Strategic Intent: Removing the database from the public internet entirely by leveraging private network routing for all data plane traffic.

Scenario: Compliance dictates Azure SQL Database cannot have public endpoints exposed. The App Service uses VNet Integration to route SQL queries (1433) safely. (ARB Note: Combine this network isolation with a System-Assigned Managed Identity for passwordless Entra ID authentication to achieve true Zero Trust.)

Source Code Below

Technical Lens

Regional VNet Int (Outbound)

SQL Private Endpoint

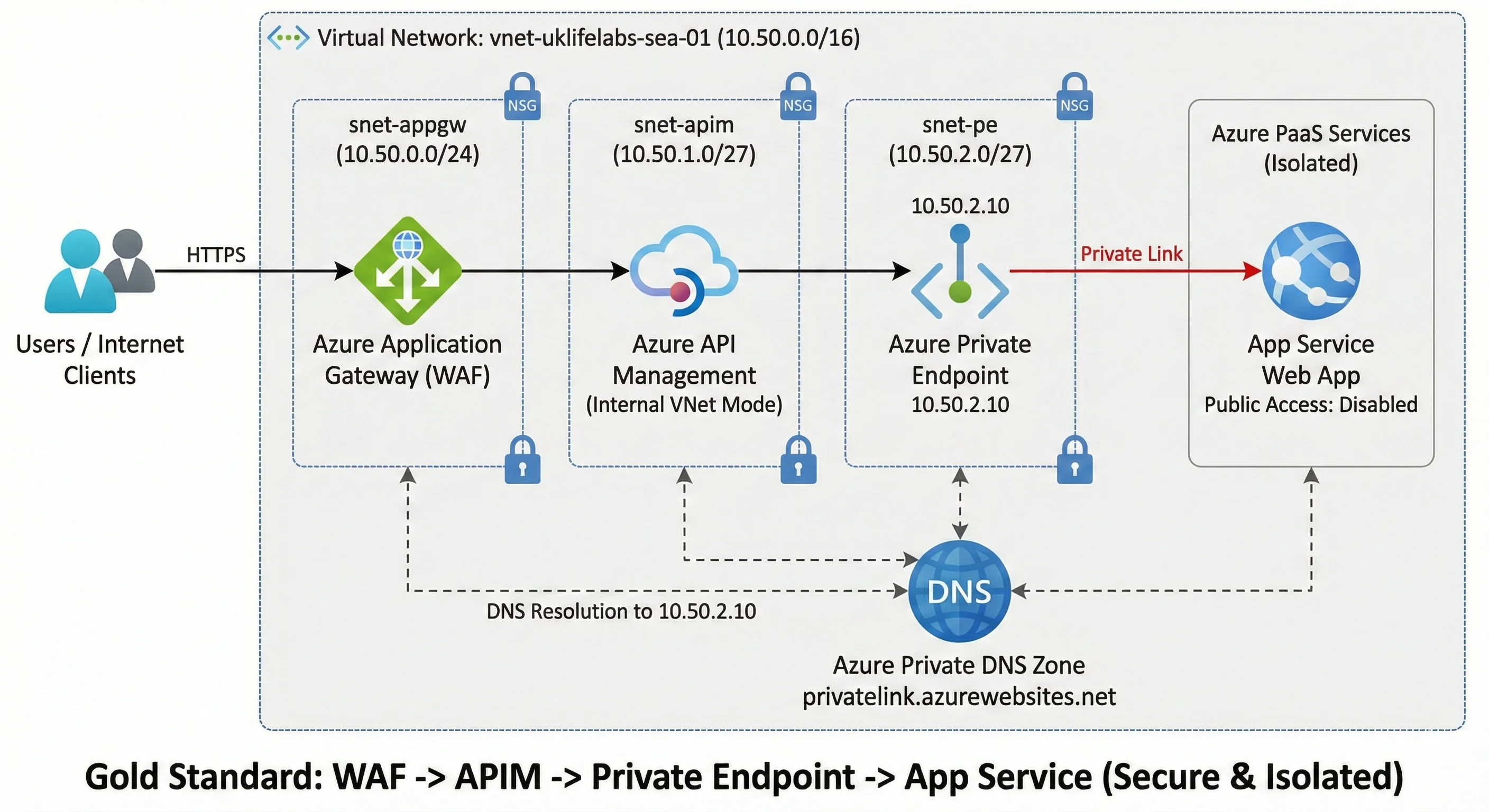

Blueprint 6: Enterprise API Governance (Gold Standard) Production Grade

Strategic Intent: The absolute zenith of Azure security: Layer 7 WAF inspection combined with API lifecycle management and full network isolation.

Scenario: Application Gateway (Public) -> API Management (Internal VNet Mode) -> (Private Endpoint). The ultimate perimeter defense.

Technical Lens

WAF v2: Rejecting SQLi/XSS

APIM: Validating JWT/OIDC

App Service: Hidden from World

Production Post-Mortems: Lessons from the Field

Infrastructure in code is deterministic; infrastructure in production is unforgiving. Here is how we resolve the critical "Day 2" failures encountered at the enterprise scale:
