Almost every agentic AI pilot that reaches security review shares the same original sin: one shared service principal, standing access to a dozen downstream systems, and a static secret sitting in a key vault nobody rotates. The demo works. The audit doesn't.
Written by Upendra Kumar, Microsoft Certified: Cybersecurity Architect Expert and Identity and Access Administrator Associate — the identity architecture in this post is the same pattern used to evaluate agentic AI designs against those certification tracks.
Executive Impact Summary
The Standing Privilege Problem
Here's how almost every agentic AI pilot gets built. Someone needs the agent to read from Azure AI Search, call Azure OpenAI, write results to a database, and maybe kick off a downstream workflow. Under deadline pressure, the fastest path is one service principal, one client secret, and a role assignment broad enough that nobody has to come back and ask for more access later — Contributor on the resource group, or worse, the subscription.
It works. The demo ships. And then it goes to security review, where three questions kill the timeline every time:
- "Which agent did this?" Every action in the logs shows the same generic identity —
svc-ai-agent-prod— whether it was Agent A summarizing a contract or Agent B deleting a stale record. There is no per-agent audit trail. - "What's the blast radius if this credential leaks?" The honest answer is: everything that service principal can touch. Not the one API the agent actually needed — every system the team was ever lazy enough to grant it.
- "How do you revoke just this agent?" You can't, without breaking every other agent sharing the same identity. The only lever is "rotate the secret and redeploy everything," which nobody wants to do mid-incident.
Composite Scenario
The following is a composite, illustrative walkthrough representative of a pattern seen repeatedly across regulated-industry agentic AI pilots — not a specific client engagement.
- Fictional Company: Solstice Underwriting
- The Agent: "ClaimAssist" — reads policy documents and drafts adjuster recommendations
- The Security Architect: designed the pilot's identity model
- The CISO: blocked the launch at review
ClaimAssist shipped in three weeks. One app registration, one client secret in Key Vault, Contributor on the resource group so nobody had to file a change request every time the pilot needed to touch a new storage container. In the demo, it read a claim file, cross-referenced the policy, and drafted a recommendation in under ten seconds. Leadership loved it.
Then it went to the CISO for launch sign-off, and the review asked the same three questions every review asks. Which agent instance touched this specific claim file — the logs said svc-claimassist-prod, which was true of every instance running that week. What could the credential reach if it leaked — the honest answer was every storage account and every Cosmos DB container in the resource group, not just the claims data ClaimAssist was built to touch. How do you shut off just this one instance without breaking the other four running in parallel — nobody had an answer that didn't involve a maintenance window.
The fix wasn't a new model or a smarter prompt. The security architect rebuilt the identity layer: each ClaimAssist instance got its own workload identity, every downstream call moved behind an API Mediation Layer, and the broad Contributor role was replaced with a JIT-eligible role scoped to exactly the claims container that instance was assigned. Six weeks later the same pilot went back to the CISO. Same agent, same model, same prompts — but this time every question had a one-line, log-backed answer, and it cleared review.
None of this is a model problem. GPT-4, Claude, or whatever LLM is doing the reasoning is not the risk. The risk is the plumbing underneath it — the fact that most agentic AI architectures were built by borrowing the identity pattern from a 2015-era backend service, not designed for a fleet of autonomous actors that can each take independent action.
Architect's Corner: A Badge vs. a Master Key
The Legacy: One Master Key
A shared service principal is a master key handed to every contractor on a building site. It opens every door, all day, every day — because cutting a new key for each contractor felt like too much overhead.
- Lose the key, and every door on the site is compromised — not just the one the contractor was supposed to be in.
- The security log just says "master key used." It never says which contractor, or which door.
Zero Standing Privilege: A Badge
A per-agent workload identity is a badge that only opens the specific doors that agent needs, only while it's clocked in for that specific task, and logs the exact person and door every single time.
- Lose one badge, and exactly one contractor's access is revoked. Everyone else keeps working.
- The security log names the person, the door, and the minute. That's what a regulator actually wants to see.
The Architecture: Per-Agent Identity, Not Per-Application
The fix isn't a new product — it's a different default. Instead of one identity per application (or worse, per environment), every agent instance gets its own workload identity, and every call it makes is forced through a mediation layer that enforces scope before anything reaches a backend system.

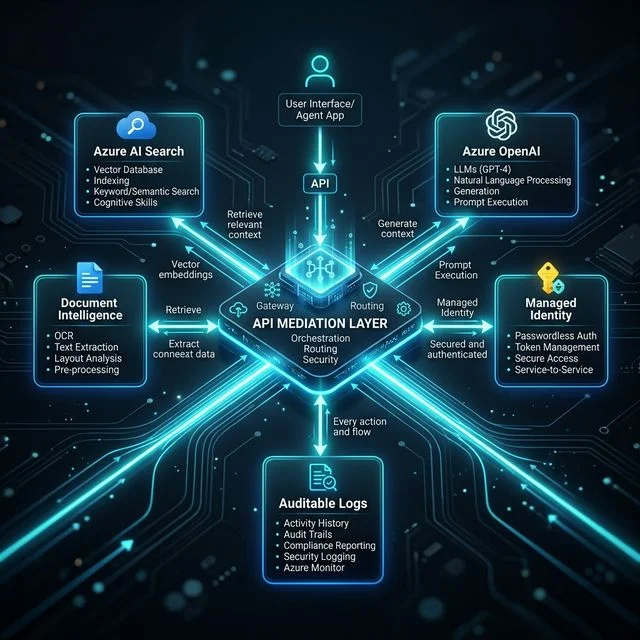

Per-Agent Identity Through the API Mediation Layer
Every agent request carries its own identity through the mediation layer. The gateway — not the agent — holds the managed identity that talks to backend services, so no agent ever sees a raw connection string or API key. Every hop is logged against the agent that made it.
Three things make this different from a normal API gateway pattern:
- The agent authenticates as itself, not as the application. Entra Agent ID (built on the same federated workload identity model as Entra Workload ID) issues a short-lived, per-instance credential — no long-lived secret to leak, rotate, or forget about.
- The mediation layer decides scope, not the agent's own code. Azure API Management sits in front of every downstream call, validates the agent's token claims, and maps them to the narrowest possible permission — read this index, call this one model deployment, nothing else.
- The mediation layer's own identity is a Managed Identity, not a secret. The gateway itself never stores a client secret either. The chain of trust holds all the way down.
Four Layers That Actually Survive Audit
1. Per-Agent Workload Identity
Retire the shared app registration. Every agent — even every instance of the same agent — gets its own federated identity. There is no secret in a config file for an attacker to find, because there is no secret at all.
2. Just-In-Time Scoped Access
Standing RBAC roles get replaced with JIT permissions through Privileged Identity Management. An agent is eligible for a role, not permanently assigned it — the elevation exists only for the task's duration, granted through a pre-authorized policy rather than a human clicking "Activate" mid-task the way a person would.
3. Mediation as the Enforcement Point
No agent gets a direct connection string to a database or a raw API key to a model deployment. Every downstream call is forced through the API Mediation Layer, where policy — not agent code — decides what's allowed.
4. Immutable, Per-Agent Audit Trail
Every action is logged against the actual agent identity that took it, not the mediation layer's identity or a shared service account. That log is what turns "we think it was fine" into a defensible answer during an audit.
None of this is free. JIT elevation for a machine identity has to be pre-authorized — an agent can't sit in an approval queue waiting for a human to click "Activate" mid-task the way a person can. The real engineering cost of this pattern isn't the identity plumbing; it's designing the policy layer that decides, ahead of time, exactly which task types earn which scoped roles automatically. Underinvest there and you've just moved the standing-privilege problem from the agent's identity to an over-broad JIT policy. That policy design is the hard part of this migration — budget for it accordingly, and expect the first version of it to be wrong.
The Zero Standing Privilege Rollout Sequence
This isn't a rip-and-replace project. It's a sequence you can run against one agent at a time without stopping the pilot.
What This Means for Your Next Audit
Regulators evaluating AI systems — whether under an internal model-risk framework, HIPAA, or the EU AI Act's obligations for high-risk systems — keep asking a version of the same question: can you demonstrate control over what this system was allowed to do, and prove what it actually did? A shared service principal cannot answer that question. It was never designed to.
Zero standing privilege isn't a compliance checkbox bolted on after the fact. It's the architecture that makes the answer to "prove it" a query against a log instead of a best-effort reconstruction. That's the difference between an agentic AI program that scales past the pilot and one that stays stuck in review indefinitely.
Reference Architectures
Do not build this from scratch. Leverage Microsoft's official reference architectures:
- Baseline Microsoft Foundry Chat Reference Architecture (Azure Architecture Center — the canonical pattern for Managed Identity flowing from Foundry Agent Service through to Azure OpenAI, behind a fully private network)
- Agent Identity Blueprints in Microsoft Entra Agent ID (How one blueprint issues many distinct, individually-auditable agent identities)
- GenAI Gateway Reference Architecture Using APIM (Confirms Managed Identity, not API keys, as the recommended auth path between the mediation layer and backend models)
- Zero-Trust Agents: Adding Identity and Access to Multi-Agent Workflows (Azure AI Foundry Blog — the same architectural argument from Microsoft's own product team)
