The Hybrid DNS Pattern That Survives Cutover Night

Cutover night has a predictable failure mode.

The hub is up. The VPN is stable. The Private Endpoint is approved. Azure SQL has public access disabled. Everyone is ready to celebrate.

Then someone runs one command:

$ nslookup azsql1.database.windows.net

And the answer comes back public.

No outage banner. No firewall drop. No routing alarm.

Just DNS quietly sending your "private" traffic toward the public world.

This post documents the Hybrid DNS pattern we standardize on for UKLifeLabs-style landing zones. Central Private DNS zones in the hub. Azure DNS Private Resolver as the control plane. A design you can explain in 30 seconds and validate in 60.

What We Are Solving

We want on-prem workloads and Azure spoke workloads to resolve Azure PaaS service names to Private Endpoint IPs, without:

• DNS forwarder VM fleets
• split-brain DNS zones across spokes
• manual record creation during migration waves
• last-minute fixes on cutover night

Challenge: DNS Ownership Breaks Private Endpoint Designs

The most common failure is not networking. It is ownership.

When every team creates its own Private DNS zones, you get:

• inconsistent records
• partial resolution depending on where the query originates
• outages that only appear during cutover

Decision 1: Centralize Private DNS Zones in the Hub

All Private DNS zones live in the Hub (Connectivity) subscription or resource group.

Example:

• privatelink.database.windows.net

Why this works:

• single source of truth
• simple governance story
• predictable behavior across all spokes

Decision 2: Use Azure DNS Private Resolver (No DNS VMs)

We deliberately avoid DNS forwarder VMs.

Instead we use:

• Azure DNS Private Resolver
• Inbound endpoint for on-prem → Azure queries
• Optional Outbound endpoint for Azure → on-prem resolution

Benefits:

• managed service
• no patching
• no custom HA design
• built for hub-and-spoke scale

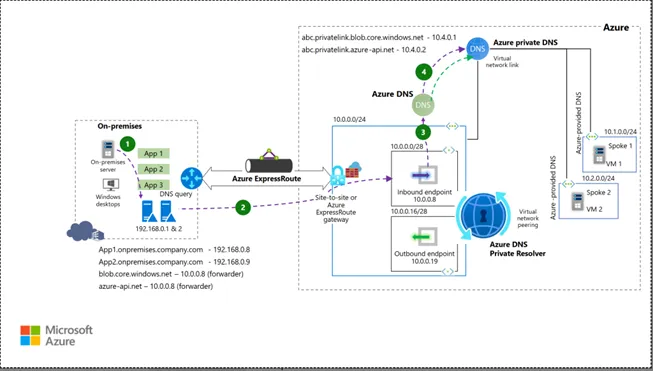

Target Architecture

Topology: On-prem → Hub → Spoke

View Technical Topology Schematic

The Mental Model: The Airport Analogy

If the diagram above feels complex, use this mental model. Think of your Azure Hub not as a network, but as an international airport.

The big question is always the same: when someone asks for a name, who answers it, and where does the question travel?

Cast of Characters

Hub (Connectivity)

• Azure DNS Private Resolver
  • Inbound endpoint (example: 10.10.0.4)
• Central Private DNS zone
  • privatelink.database.windows.net
• VNet links to spokes that require resolution

Spoke (Workload)

• Azure SQL Server (public access disabled)
• Private Endpoint pe-sql (example: 10.20.1.4)
• Private DNS zone group linked to the hub zone

Workflow: Cutover-Safe Resolution Path

1. Client queries azsql1.database.windows.net via on-prem DNS
2. On-prem DNS conditionally forwards database.windows.net to Resolver inbound endpoint
3. Inbound endpoint hands query to DNS Private Resolver
4. Resolver determines Private Link CNAME
5. Resolver queries privatelink.database.windows.net
6. Private DNS zone returns Private Endpoint IP
7. Resolver returns answer to on-prem DNS
8. On-prem DNS returns private IP to client
9. Client connects privately to Azure SQL via Private Endpoint

The 3 DNS Flows

There are only three stories that matter. If you can trace these, you can troubleshoot anything.

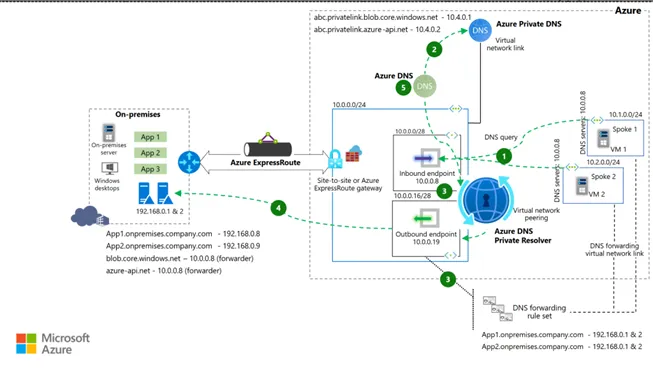

Flow 1: On-prem asks for Azure Private Name

View Technical Flow Schematic

• Scenario: On-prem app needs blob.core.windows.net.
• Path: On-prem DNS → Inbound Endpoint (Arrival Gate) → Azure DNS → Private DNS Zone.
• Result: Returns Private Endpoint IP (e.g., 10.4.0.1). No public IP ever crosses the wire.

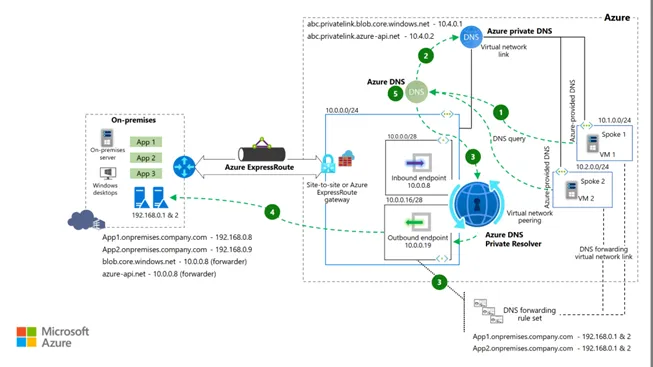

Flow 2: Azure VM asks for Azure Private Name

View Technical Flow Schematic

• Scenario: Spoke VM needs to talk to the same Blob Storage.
• Path: Spoke VM → Azure DNS (168.63.129.16) → Checks Linked Private DNS Zones.
• Result: Returns Private Endpoint IP directly. Fast, internal, no hops.

Flow 3: Azure VM asks for On-prem Name

View Technical Flow Schematic

• Scenario: Spoke VM needs app1.onprem.company.com.
• Path: Spoke VM → Azure DNS → Forwarding Rule Set → Outbound Endpoint (Departure Gate) → On-prem DNS.
• Result: Returns on-prem IP (e.g., 192.168.0.8).

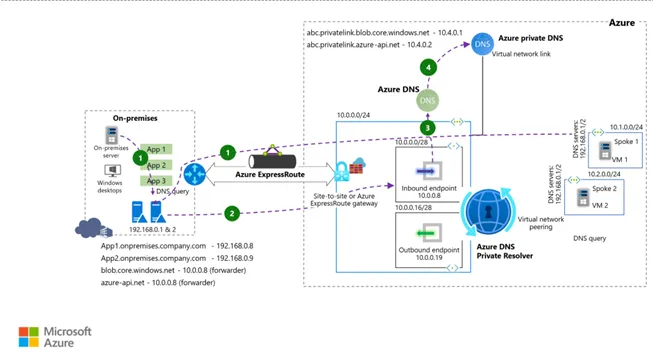

Alternative Configuration: All-In-One Path (Option B)

In some strict designs, you might point Spoke VMs directly to the Inbound Endpoint IP as their custom DNS server.

View Technical Schematic for Option B

Trade-off: This gives you one DNS IP for everything, but adds a dependency on the hub path for all queries (even internal VNet ones).

Why This Survives Cutover Night

• Central DNS governance
• Predictable resolution chain
• No hidden DNS VMs
• One place to validate and troubleshoot

Common Failure Modes

60-Second Validation Test

From on-prem:

$ nslookup azsql1.database.windows.net

Expected:

• Private Endpoint IP

If you get a public IP, DNS is broken.

Operating Model

Platform Team

• DNS Private Resolver
• Private DNS zones
• VNet links
• Policy and guardrails

Application Teams

• Private Endpoints
• Request or attach DNS zone groups

Reference Implementation

A working Terraform-based reference implementation is available here:

https://github.com/appliedailearner/privatednsresolver

Closing Thought

Private Link is not the hard part.

Making DNS boring is.

This pattern does exactly that.
