The New "Pinning Trap": Why Hardcoded API Keys in Agentic AI Are a Security Disaster

We see it everywhere: engineers passing raw API keys directly into LLM Orchestrators like Semantic Kernel. It is the AI equivalent of certificate pinning—brittle, un-auditable, and a massive enterprise risk.

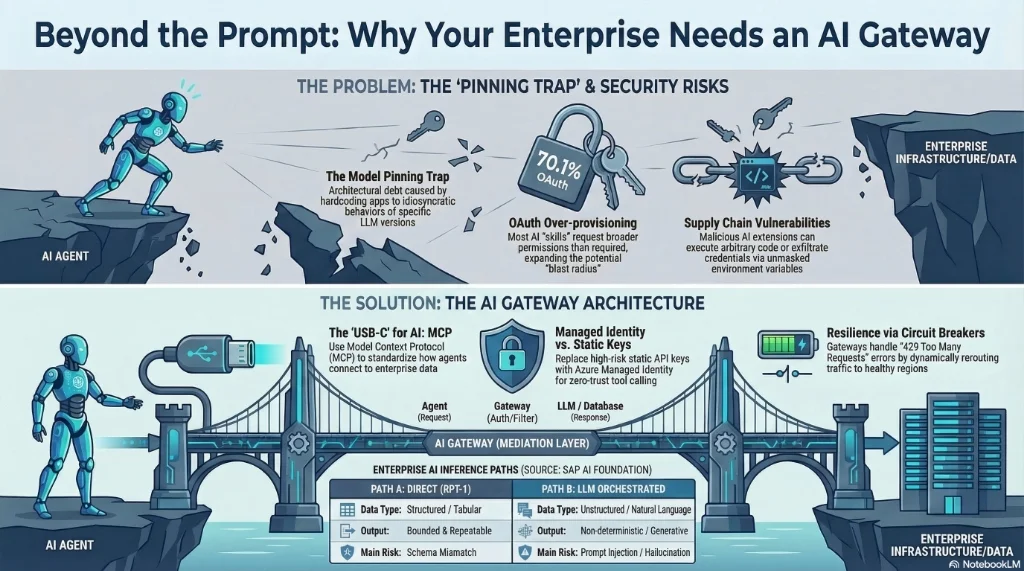

The Agentic Architecture shift: Moving from the hardcoded "Pinning Trap" to a regulated, zero-trust API Mediation Layer.

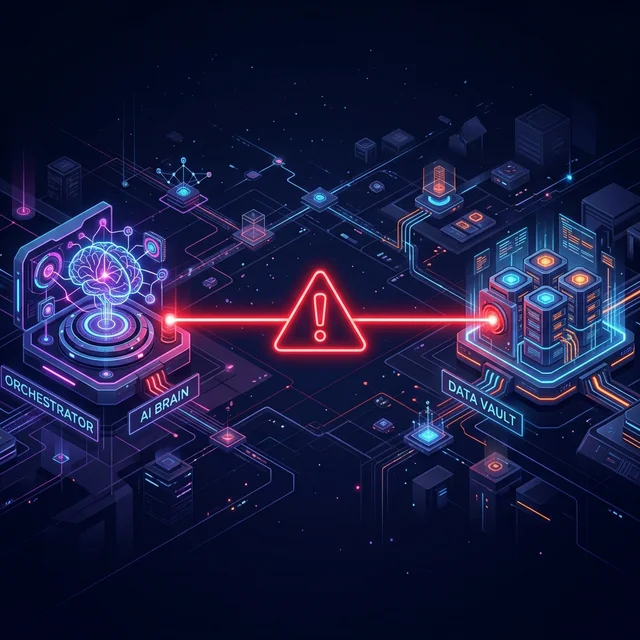

The Agentic Pinning Trap

The Anti-Pattern: A direct, unmediated connection between an AI Orchestrator and backend data stores via static credentials creates a massive zero-trust violation.

In enterprise architecture, we often see how hardcoding trust (like Certificate Pinning) creates brittle systems. You write a script that says, "Trust only this specific ID badge." That works beautifully until the badge rotates, and then your production system crashes.

The exact same convenience trap is happening right now with Agentic AI.

We are seeing enterprise teams build brilliant Multi-Agent workflows. A Coordinator agent passes a task to a Worker agent. The Worker agent uses Semantic Kernel to look up a customer in the CRM or query an SQL database. But here is the fatal flow: They are passing the raw database API keys directly to the agent.

The developer writes a line of code like this:

// DANGER: Passing a raw, static API key directly to the orchestrator
var kernel = Kernel.CreateBuilder()
    // ❌ Hardcoding the OpenAI Key
    .AddAzureOpenAIChatCompletion(
        deploymentName: "gpt-4",
        endpoint: "https://my-openai.openai.azure.com/",
        apiKey: "STATIC_OPENAI_KEY_12345")
    .Build();

// ❌ Hardcoding the Enterprise Database Key into the LLM Plugin
kernel.ImportPluginFromOpenApi(
    pluginName: "CustomerDatabase",
    apiKey: "STATIC_DB_KEY_999");

// SUCCESS: Using DefaultAzureCredential against the APIM Gateway
var credential = new DefaultAzureCredential(); // Fetches Entra ID Token automatically

var kernel = Kernel.CreateBuilder()
    // ✅ Pointing to the APIM Gateway, NOT the raw Azure OpenAI endpoint
    .AddAzureOpenAIChatCompletion(
        deploymentName: "gpt-4",
        endpoint: "https://my-corp-apim.azure-api.net/openai/",
        credentials: credential)
    .Build();

// ✅ Plugins communicate via Entra ID auth through the Gateway
kernel.ImportPluginFromOpenApi(
    pluginName: "CustomerDatabase",
    credential: credential);

This is a security disaster.

The Building Blocks: SDK vs. Semantic Kernel vs. MCP

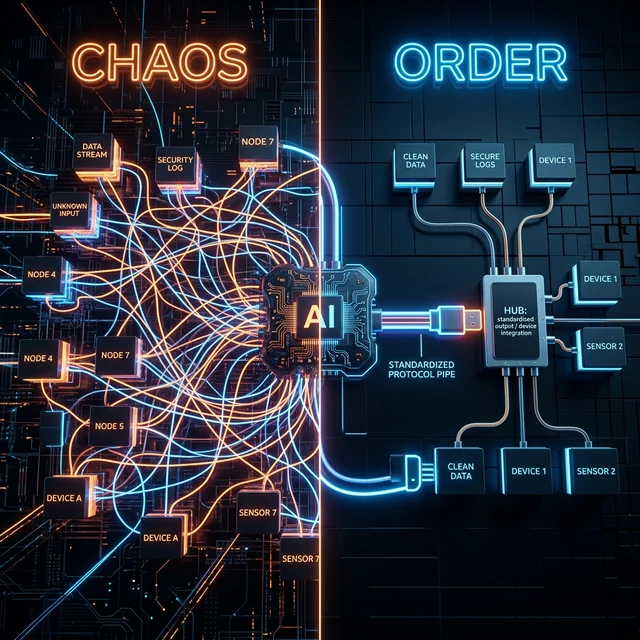

The MCP Standard: Replacing chaotic, point-to-point custom plugins with a single, universal integration protocol.

Before we build the fortress, we need to clarify our tools, because developers often blur the lines between execution, orchestration, and standardization.

These tools all help you build software, but they operate at completely different levels of abstraction. Think of building a house:

In a modern enterprise Agentic AI architecture, you use all three: Your developer writes an MCP Server to safely access an internal customer database. Under the hood, that MCP Server executes actual database queries using the Azure SDK. Your Semantic Kernel agent then connects to the database via the MCP standard, bypassing the need for proprietary plugins.

The Realist Fix: The API Mediation Layer

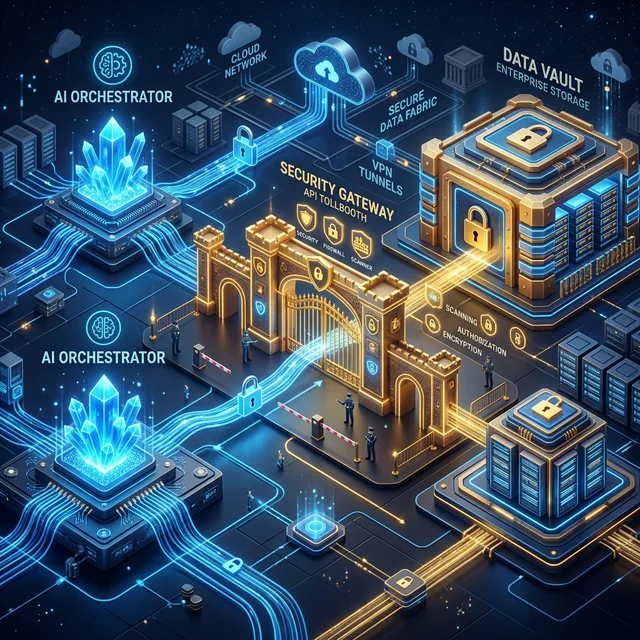

Target State: Semantic Kernel tool execution routed through the Azure API Management Enterprise Boundary using Managed Identity.

The CISO asked, "How do we know the LLM will not hallucinate a DROP TABLE command and execute it?"

The answer is that the LLM should never be authorized to talk to the database in the first place.

To deploy Agentic AI in a Regulated Industry, we must introduce the API Mediation Layer. This means no point-to-point connections between Semantic Kernel and backend systems. Every tool call must be routed through a central gateway (like Azure API Management).

Here is what the API Mediation Layer provides:

The Extrication Plan

Are you ready to untangle your Agentic AI from static credentials? Here is the sequence:

If you don't build the tollbooth now, you will be rewriting your entire AI orchestration layer the week before your production audit.
